The PISO Shift Register Tutorial

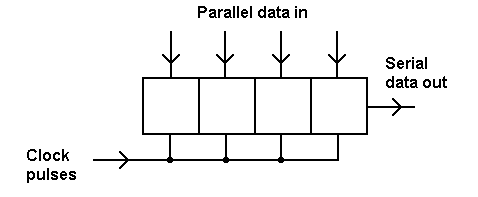

PISO Shift Register Block Diagram

With the PARALLEL IN/SERIAL OUT shift register, four bits are  shifted into the register simultaneously, in parallel.

They are then clocked out, one after the other, in serial form.
