Interface Stepper Motor Bipolar

Author: Prof. Dr. Marco Gottardo
Email:  ad.noctis@gmail.com

Prof. Dr. Marco Gottardo
Project Code Short Description Image

Interface Stepper Motor Bipolar

Dual H bridge used to interface stepper motor power or two DC motors with armature current up to 8A continuous control systems such as PLC or microprocessor cards. The base resistances are calculated as a function of control voltage. Caution: not protected H-bridge, never to give conflicting commands back and forth simultaneously.

Download file FidoCad interface for bipolar stepper

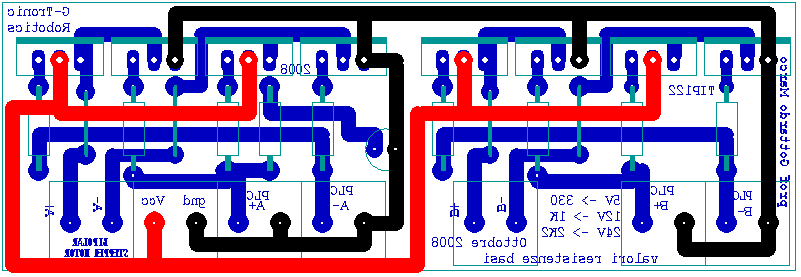

Interface Stepper Motor Bipolar PCB Layout

Check availability of the PCB or by writing for the assembled projects to
ad.noctis@gmail.com
