Opamp Dual Power Supplies Tutorial

Opamp Dual Power Supplies Diagram

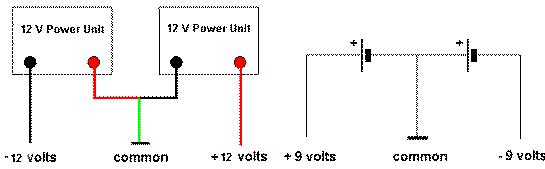

Most opamp circuits require two differing polarity voltages. The upper diagram shows how the two supplies are connected together.

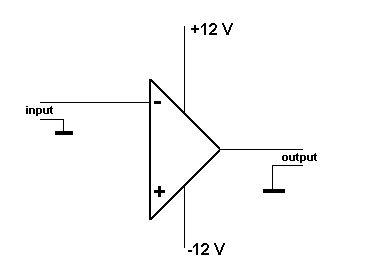

The bottom diagram shows how the common lead of the power supplies is connected to the input and output (and the common connection of any other associated circuitry).

Opamp Dual Power Supplies Diagram
